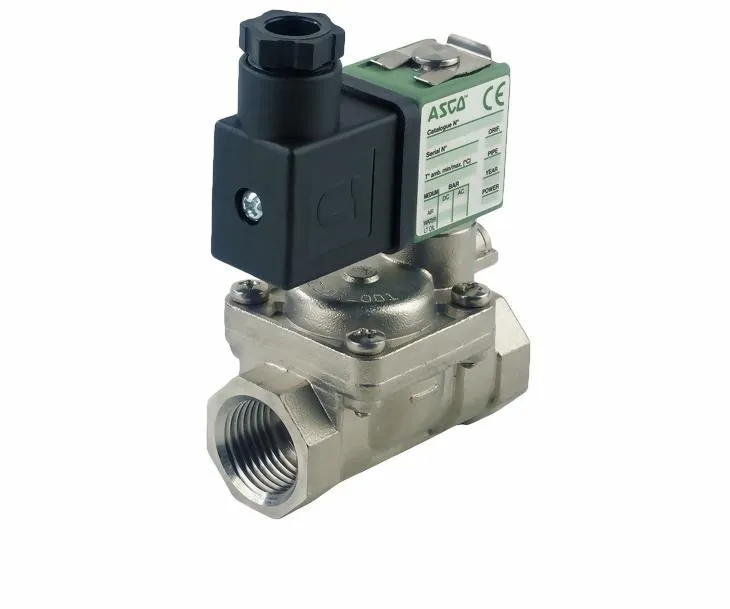

Solenoid Valves – Reliable Automated Flow Control Solution
Solenoid Valves are electromechanical valves used to automatically control the flow of liquids, gases, air, steam, and other compatible media. They use an electrically energized solenoid coil to move an internal plunger, diaphragm, piston, or spool, thereby opening, closing, or directing fluid flow.
Solenoid valves are widely used in industrial automation, pneumatic systems, hydraulic equipment, water treatment, chemical processing, pharmaceutical plants, HVAC systems, manufacturing machinery, oil & gas, power generation, and process-control applications.
How Does a Solenoid Valve Work?
A solenoid valve consists primarily of a solenoid coil and valve body. When electrical power is applied to the coil, an electromagnetic field moves the internal core or plunger, changing the position of the valve and controlling the flow path. When the electrical signal is removed, a spring or other mechanism can return the valve to its normal position, depending on the design.
Types of Solenoid Valves
1. Direct-Acting Solenoid Valves
In a direct-acting solenoid valve, the electromagnetic force directly moves the valve's internal core to open or close the orifice. These valves can be designed to operate without a minimum pressure differential, depending on the specific construction.
2. Pilot-Operated Solenoid Valves
Pilot-operated solenoid valves use a smaller pilot mechanism to control the main diaphragm or piston. They are commonly selected for applications requiring larger flow capacity while keeping the solenoid mechanism relatively compact.
3. Normally Closed Solenoid Valves
A Normally Closed (NC) valve remains closed when the solenoid is de-energized and opens when the appropriate electrical signal is applied.
4. Normally Open Solenoid Valves
A Normally Open (NO) valve remains open when de-energized and closes when the solenoid is energized.
5. 2-Way Solenoid Valves
Two-way valves have an inlet and outlet and are primarily used to start or stop fluid flow.
6. 3-Way Solenoid Valves
Three-way valves provide multiple flow paths and are commonly used for pneumatic actuator control, process control and diverting applications.
7. 4-Way & 5-Way Solenoid Valves
Multi-way valves are frequently used in pneumatic automation systems to control the direction of double-acting cylinders and other actuators.
Applications of Solenoid Valves
Solenoid valves are used across many industries, including:
- Industrial Automation
- Pneumatic & Hydraulic Systems
- Chemical Processing
- Oil & Gas
- Pharmaceutical Manufacturing
- Water Treatment
- Food & Beverage Processing
- Power Generation
- HVAC Systems
- Compressed Air Systems
- Dust Collection Systems
- Packaging Machinery
- Manufacturing Equipment
- Process Control Systems
Industrial solenoid valves are available for different media and operating conditions, including water, air, inert gases, steam and other compatible fluids, depending on the valve construction and seal materials.
Key Features of Solenoid Valves
- Fast electrical actuation
- Automatic flow control
- Compact and efficient design
- Suitable for remote operation
- Available in normally open and normally closed configurations
- Direct-acting and pilot-operated designs
- Multiple port and connection configurations
- Different body and seal materials
- AC and DC coil options
- Suitable for pneumatic and process-control applications
- Available in brass, stainless steel, aluminum and other constructions depending on application
Benefits of Solenoid Valves
Fast Response
Solenoid valves can provide rapid switching, making them useful in automated processes requiring quick control.
Automatic Operation
Electrical signals from PLCs, controllers, sensors or automation systems can operate the valve without manual intervention.
Compact Design
Many solenoid valves provide automated flow control in a relatively compact package.
Versatile Applications
Different configurations allow solenoid valves to be used with air, water, gases, steam and other compatible media.
Easy Integration
Solenoid valves can be integrated into pneumatic panels, process-control systems and automated machinery.
How to Select the Right Solenoid Valve
Before selecting a solenoid valve, consider:
- Type of media
- Operating pressure
- Temperature range
- Flow rate / required Cv
- Port size
- Valve configuration
- Normally Open or Normally Closed operation
- Coil voltage
- Body material
- Seal material
- Operating environment
- Required certifications and standards
The valve should always be selected according to the manufacturer's specifications and the actual process conditions.
Solenoid Valve Manufacturer & Supplier in India
Looking for a reliable Solenoid Valve Manufacturer and Supplier in India? Solenoid valves are available in different configurations for industrial automation, pneumatic control, water treatment, chemical processing, HVAC, pharmaceutical and process-control applications.
Depending on the application, options can include brass or stainless-steel bodies, direct-acting or pilot-operated designs, 2-way or 3-way configurations, and different elastomer seal materials.
