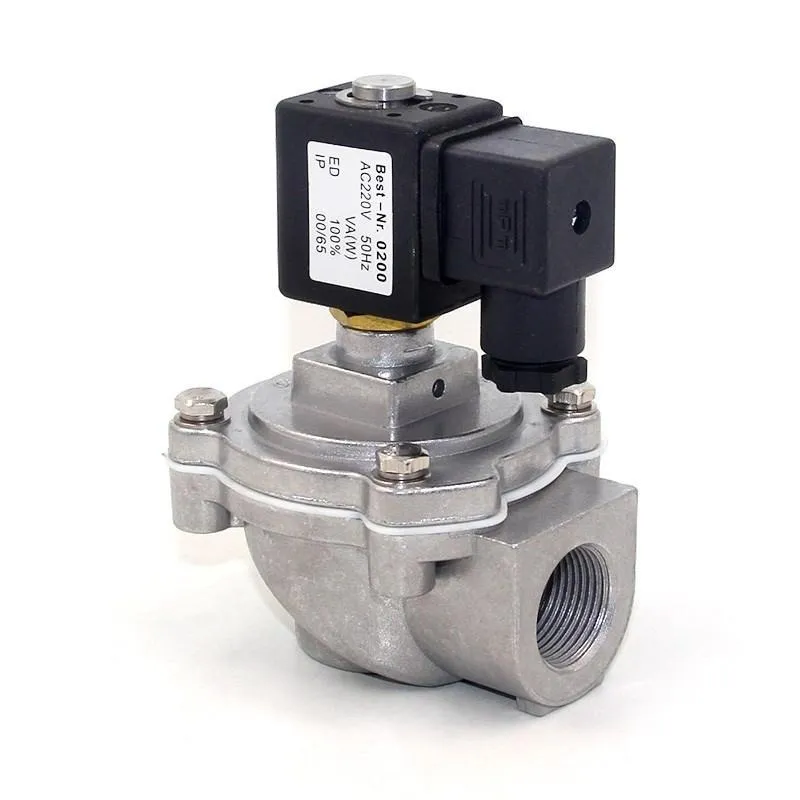

A Dust Collector Valve is an important component used in industrial dust collection and filtration systems. Also known as a Pulse Jet Valve, Dust Collector Pulse Valve or Diaphragm Pulse Valve, it releases a rapid burst of compressed air to clean dust from filter bags, cartridges and other filter media.
These valves are widely used in pulse-jet bag filters, cartridge dust collectors and industrial air-pollution control systems. The rapid compressed-air pulse helps remove accumulated dust from the filter surface and supports efficient filtration performance.
Key Features
- High-speed pulse operation
- Efficient compressed-air release
- Robust diaphragm construction
- Compact industrial design
- Available in different port sizes
- Suitable for bag and cartridge filters
- Reliable ON/OFF operation
- Low-maintenance construction
- Aluminium and other material options
- Different solenoid coil voltage options available
- Suitable for continuous industrial applications
Common commercial configurations include 3/4', 1', 1½', 2' and larger port sizes, depending on the valve series and application. Diaphragm materials can include NBR or Viton for different operating conditions.
How Does a Dust Collector Valve Work?
In a pulse-jet dust collector, compressed air is stored in an air manifold or header. When the cleaning cycle is activated, the solenoid/pilot mechanism rapidly opens the diaphragm valve and releases a short, high-volume air pulse through the cleaning pipe. This pulse dislodges accumulated dust from the filter bags or cartridges, allowing the dust to fall into the collection hopper.
Applications
Dust Collector Valves are commonly used in:
- Cement plants
- Steel and metal industries
- Chemical industries
- Pharmaceutical industries
- Food processing plants
- Mining applications
- Foundries
- Power plants
- Silo and bulk-material handling
- Industrial bag filter systems
- Cartridge filter systems
- Air pollution control equipment
Industrial pulse valves are specifically used for reverse-pulse cleaning of bag filters, cartridge filters, envelope filters, ceramic filters and sintered-metal-fibre filters.
