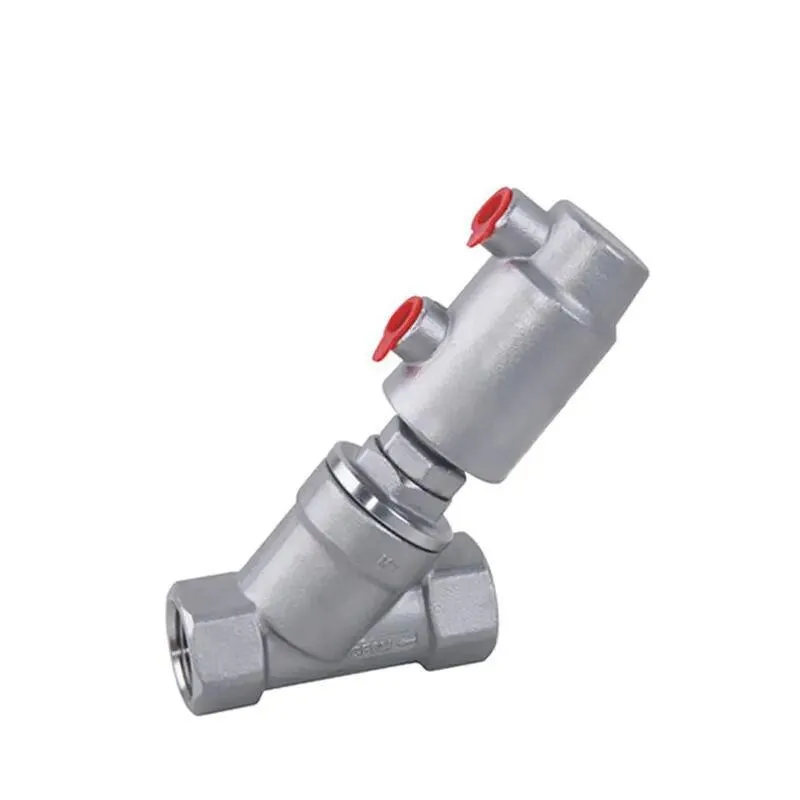

Angle Seat Valves are pneumatically actuated process valves designed for reliable control of liquids, gases, steam and other compatible media in industrial piping systems. Their angled body configuration provides efficient flow characteristics while offering a compact solution for automated process control.
Pneumatic angle seat valves are widely used in chemical plants, pharmaceutical industries, food processing, water treatment, breweries, textile industries and general process automation.
What is an Angle Seat Valve?
An Angle Seat Valve is a pneumatically operated valve in which the valve body and flow path are arranged at an angle, typically around 90°. The actuator uses compressed air to open or close the valve.
Depending on the application and valve configuration, angle seat valves can be supplied as normally closed (NC), normally open (NO), or double-acting versions.
Applications of Angle Seat Valves
Angle seat valves are suitable for various industrial process applications, including:
- Water and liquid control
- Steam control
- Compressed air systems
- Chemical processing
- Pharmaceutical processing
- Food and beverage plants
- Dairy processing
- Textile machinery
- Water treatment plants
- CIP systems
- Washing and cleaning systems
- Industrial automation
- Pneumatic process control
- General process piping
Key Features
- Pneumatic actuation
- Compact angled-body design
- Fast opening and closing
- Suitable for automated process control
- Good flow characteristics
- Stainless steel body options
- Available with different seal materials
- Normally Closed and Normally Open configurations
- Single-acting and double-acting options
- Suitable for multiple industrial media
- Easy integration with pneumatic control systems
- Optional position feedback and control accessories
