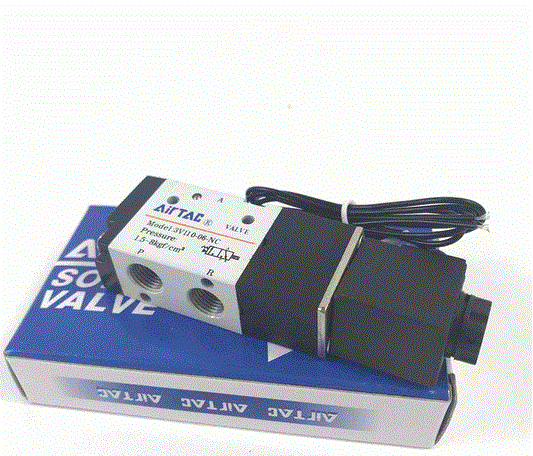

AirTAC Solenoid Valve 3V110-06
Categories: Industrial Control, Sensor, Solenoid Valve.
Product Feature:
1)Pilot-oriented mode:Internal pilot or external pilot.
2)Structure in sliding column mode: good tightness and sensitive reaction.
3)Double control solenoid valves have memory function.
4)Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5)No need to add oil for lubrication.
6)Affiliated manual devices are equipped to facilitate installation and debugging.
7)Several standard voltage grades are optional.
8)Integrate with the manifold to save installation space.
Specification:
Fluid : Air to be filtered by 40 µm filter element
Acting : Internal Pilot or external pilot
Port Size :M5 & 1/8″
Valve Type : 3 port 2 position
Working-pressure : 0.15~0.8MPa(21-114psi)
Max.Pressure Resistance : 1.5MPa(215psi)
Operating Temperature : -20~70°C
Material of Body : Aluminum Alloy
Highest Action Frequency :5 Cycle/Sec
We Leading in AirTAC Solenoid Valve 3V110-06 Supply at Makarpura GIDC
Categories: Industrial Control, Sensor, Solenoid Valve.
Product Feature:
1)Pilot-oriented mode:Internal pilot or external pilot.
2)Structure in sliding column mode: good tightness and sensitive reaction.
3)Double control solenoid valves have memory function.
4)Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
5)No need to add oil for lubrication.
6)Affiliated manual devices are equipped to facilitate installation and debugging.
7)Several standard voltage grades are optional.
8)Integrate with the manifold to save installation space.
Specification:
Fluid : Air to be filtered by 40 µm filter element
Acting : Internal Pilot or external pilot
Port Size :M5 & 1/8″
Valve Type : 3 port 2 position
Working-pressure : 0.15~0.8MPa(21-114psi)
Max.Pressure Resistance : 1.5MPa(215psi)
Operating Temperature : -20~70°C
Material of Body : Aluminum Alloy
Highest Action Frequency :5 Cycle/Sec
We Leading in AirTAC Solenoid Valve 3V110-06 Supply at Makarpura GIDC
