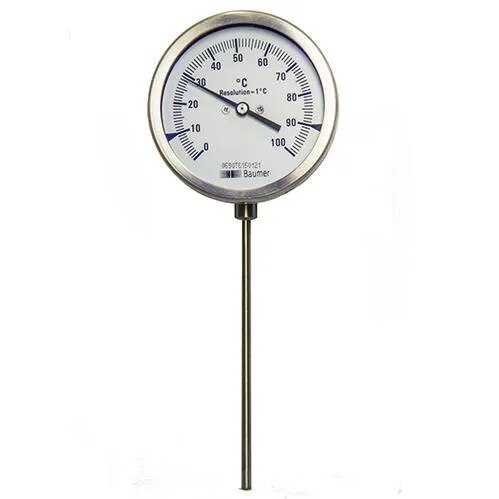

Temperature Pressure Gauge

Mercury / Gas Version

Type : Stem / Every Angle / Anti Vibration Stem / Capillary - S.S. / Armour

Dial Size : ø 100mm - 150mm - 250mm

Range : 0 - 50, 100, 120, 150, 160, 200, 250, 300, 400, 500, 600, 650ºC

-38 +50, -20 +60, -20 +80, -30 +70, -30 +120ºC

Degree : Centigrate ºC, Degree Ferenite ºF

Dial : Aluminium, Black Graduations on White Background

Entry : Bottom - Direct / Surface, Center / Essentric Back / Back with Panel Flange (BCPM)

Accuracy : +/- 1% FSD

Ambient Temperature : - 25ºC to 65ºC

Operating Pressure : 15 Kg/cm2

Process Temp : As Per Range

Capillary Material : S.S. 304, S.S. 304 Armour / S.S. 304 with PVC

Window : Glass / Toughened / Options : Shatter Proof Glass / Plexi Glass

Gasket : EPDM

Options : Glycerine Filled and Electrical Contact 1AMP, 230 VAC

Certificate : TEST & CALIBRATION CERTIFICATE

APPLICATION :

Petro Chemical Pharmaceutical Oil Exploration & Production Papermills, Power Generation, Food and Beverage Industry, Water Treatment Plant, Offshore & Ship Building Industries.
