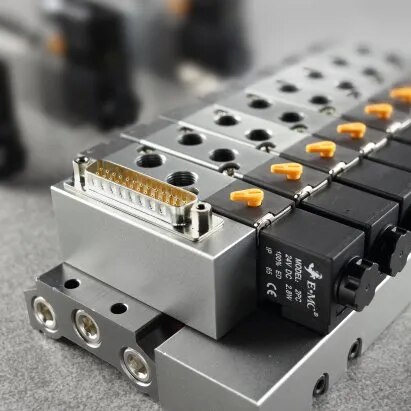

Solenoid valve

For the miscellaneous requirements of our customers, we are in offering an extremely qualitative Solenoid Valve.

Solenoid valve

Specification : we have verity of solenoid valve And pilot valves,available in different configuration 5/2,5/3,3/2 with different port size.the material used is aluminium and engineering plastic.these vales can be used in different conditions and in combination with various control elements.

Valve Types : 2 position / 5 ports

3 Potions / 5 Ports

Control form : Single Operated / Double operated

Port Size : 1/8",1/4",3/8",1/2"

Working Mode : blank :2 Position

C: 3 Position - Center Closed

Coil Voltage : DC 12v , DC 24V , AC 110v , AC 220V

Allowable Voltage Range : ±10% (FOR AC) ,±2% (FOR DC)

Applicable Medium : Compressed air ,dry filtered and lubricator

Applicable Pressure : 1.5-8 kg

Design : Spool Type

Applicable Temperature : 5-60°c
