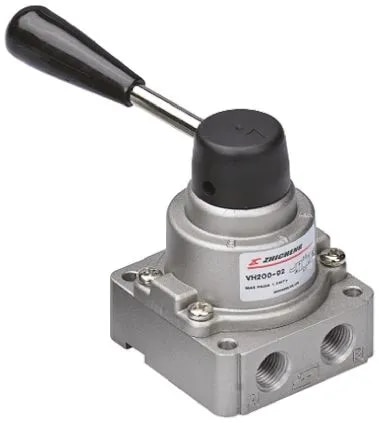

Hand Lever Valve
In stock • cod available
Description
In order to offer excellent product range to meet the diverse requirements of prestigious clients, we are able to offer Hand Lever Valve.
Disk Rotary Valve
Specification.: 3 Position / 4 Position Valve
Port Size Available in 1/8" ,1/4", 3/8", 1/2".
Diameter : 6mm , 8mm, 10mm, 15mm
Applicable Medium : Compressed Air, Dry, Filtered And Lubricated.
Applicable Pressure Range :1.5-8 kgf
Design : Rotary Disc Type
Applicable Temperature : -5-60°c
Features : Operating Angel 90°
Ensured Pressure Resistance up to 1.2mpa
Excellent Seal And Long Service Life
Mounting And Individual Unit.
